Gravity Separator

OPTIONAL ACCESSORIES

Additional Deck meant for small seeds, like vegetables seeds, grass seeds, flower seeds etc.
Surge bin/buffer hopper.
Vibratory feeder for non-free flowing grains
Canopy dust system including hood to cover part of the deck, connecting duct, cyclone dust collector with integral fan

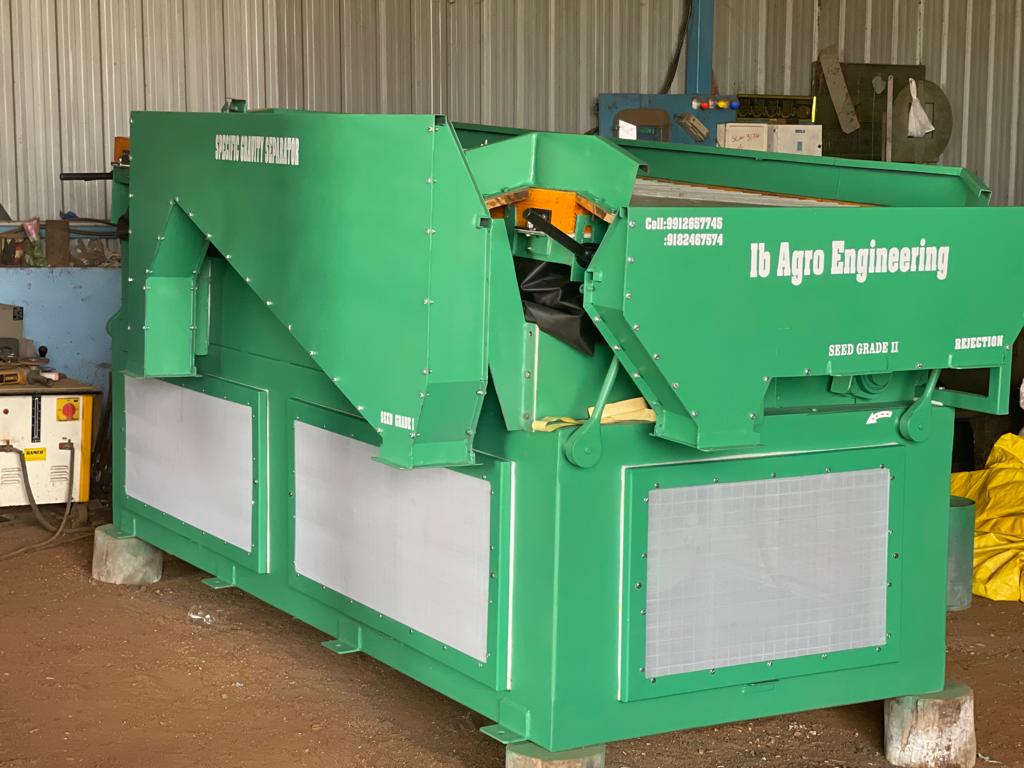

Gravity Separator

The Machine is specifically meant for achieving very high grading quality in any free flowing granular material, grains all types of seeds, spices, etc. It. removes the impurities and upgrades the material on the principle of specific weight.

SALIENT FEATURES

Rectangular Deck for greater capacity and accuracy, quickly & easily inter changeable type.
Fans are dynamically balanced with individually adjustable air control for each fan for precise control of air flow
All the fans are mounted on one common shaft
Variable oscillation speed of deck in wide range
Deck assembly is rested on four specially designed levers with bearings for smooth and trouble free operation
Variable inclination of deck side wise and length wise in wide range
Seed collecting spouts are fitted with bag holding clamps.
Eccentrics are counter balanced giving smooth oscillation to the deck.
Miniature feeding hopper with variable feeding rate through controlled gate.
Built in air filters can be easily removed for easy access to the moving parts

Optional Equipment

Technical Specification	IBG – 2	IBG – 4	IBG – 6
Capacity	1 to 1.5 ton per hour	2 ton per hour	4 ton per hour
No.of Fans	3	5	7
Size of Deck (cms) WxL	800×1580	1055X2340	1200X3000
Type of Deck	Rectangular Type	Rectangular Type	Rectangular Type
Electric Drive Crompton Motor	5HP 3Ph. 50 Cycle AC Supply	7.5HP 3Ph. 50 Cycle AC Supply	10HP 3Ph. 50 Cycle AC Supply
VFD Vibro Model	1.5 HP	2.0 HP	2.0 HP
